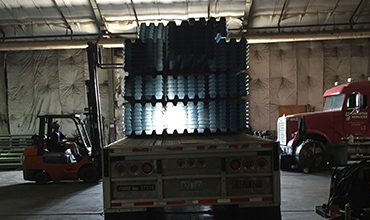

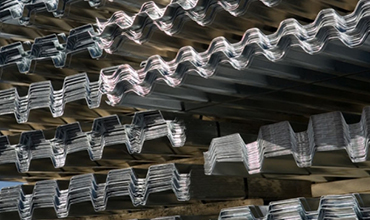

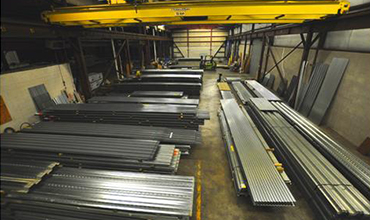

Stock Deck at our Warehouse

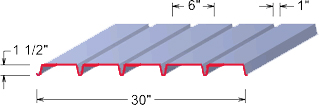

Type A Metal Roof Deck is a 1 1/2 deep, narrow rib metal roofing deck that provides an economical metal roofing system when utilized with thinner insulation materials, allowing maximum area for adhesive contact. It is also used as a secondary structural diaphragm member to provide for lateral force distribution to the structure’s vertical force resisting systems. Available with either a galvanized roofing finish or prime painted to inhibit rust while in transit (primer is not a finish coat), Type A Roof Deck is produced with a 30” cover width in three steel thicknesses.
Type A Metal Roof Deck (Narrow Rib)

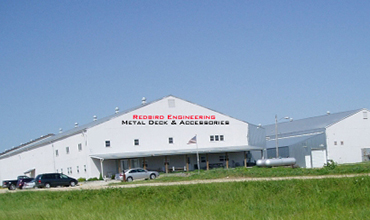

Redbird's network of warehouseing across the U.S. means we have the deck you need, and the size you need on the day you need to have it.
Need help to determine what deck your currently trying to match the profile to? Click Below on this easy to use tool to quickly determine what type of deck you require for your project. If you have any questions give us a call at 314-965-3136.
Steel Roof Deck

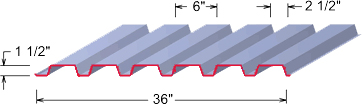

Type B Metal Roof Deck (Wide Rib)
Type B Metal Roof Deck is a 1 1/2 deep, wide rib, structural metal roof deck section that provides a support surface for various types of roofing materials. It is also used as a secondary structural diaphragm member to provide for lateral force distribution to the structure’s vertical force resisting systems. Type B metal roofing deck is available in four standard gauges with either a galvanized finish or prime painted to inhibit rust while in transit (primer is not a finish coat). The most commonly produced cover width is 36”, but narrower widths are available. B-Acoustical, B-Cellular, and B-Cellular & Acoustical are also available (longer lead times may be required).

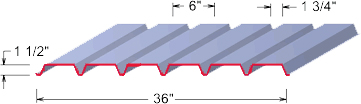

Type F Metal Roof Deck (Intermediate Rib)
Type F Metal Roof Deck is a 1 1/2 deep, intermediate rib metal roof deck that provides an economical roofing system of structural load carrying capacity and roofing insulation materials. It is also used as a secondary structural diaphragm member to provide for lateral force distribution to the structure’s vertical force resisting systems. Type F Metal Roof Deck is commonly produced in three gauges and a 36” cover width with either a galvanized finish or prime painted to inhibit rust while in transit (primer is not a finish coat).
Type N Metal Roof Deck (Deep Rib)
Type N Metal Roof Deck is a 3 tall, deep rib metal roof deck, that is designed to provide an economical roofing support surface when longer spans are required between roofing supports. It is also used as a secondary structural diaphragm member to provide for lateral force distribution to the structure’s vertical force resisting systems. Type N Metal Roof Deck is available in 24” cover width and three standard gauges, with either a galvanized finish or prime painted to inhibit rust while in transit (primer is not a finish coat). Please inquire for availability of special gauges or finishes. N-Acoustical, N-Cellular, and N-Cellular & Acoustical are also available (longer lead times may be required).
Steel Form Deck

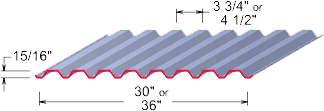

15/16" Form Deck
Design Thickness
26 ga. (.0179)
24 ga. (.0252)
22 ga. (.0295)
Available Finish
Galvanized G-60
Galvanized G-90
Form Deck Industry References
TF50 UFS CF 1/2
0.6C SF
S-dek 0.6FD
Design Thickness
28 ga. (.0149)
26 ga. (.0179)
24 ga. (.0252)
22 ga. (.0295)
Available Finish
Galvanized G-60
Galvanized G-90
Prime Painted Gray
Form Deck Industry References
TF75 UFIX CF 7/8
1.0C HF
HD 1.0FD
9/16" Form Deck

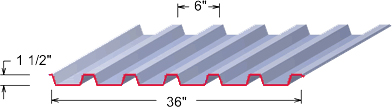

1 1/2" Form Deck
Design Thickness
22 ga. (.0295)
20 ga. (.0358)
18 ga. (.0474)
16 ga. (0.600)
Available Finish
Galvanized G-60
Galvanized G-90
Prime Painted Gray
Form Deck Industry References
TF150 EF
1.5C 1.5FD
ISD
Composite Floor Deck

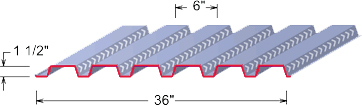

1 1/2" Composite Deck
Design Thickness
22 ga. (.0295)
20 ga. (.0358)
18 ga. (.0474)
16 ga. (0.600)
Available Finish
Galvanized G-60
Galvanized G-90
Phosphatized +Prime
Form Deck Industry References
SB150 B-LOK
1.5VL 1.5CD
CFD1.5 EC150

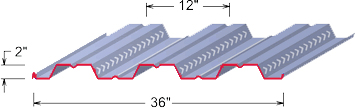

2" Composite Deck
Design Thickness
22 ga. (.0295)
20 ga. (.0358)
18 ga. (.0474)
16 ga. (0.600)
Available Finish
Galvanized G-60
Galvanized G-90
Phosphatized +Prime
Form Deck Industry References
SB200 2" LOK FLOOR
2VL 2.0CD
CFD2

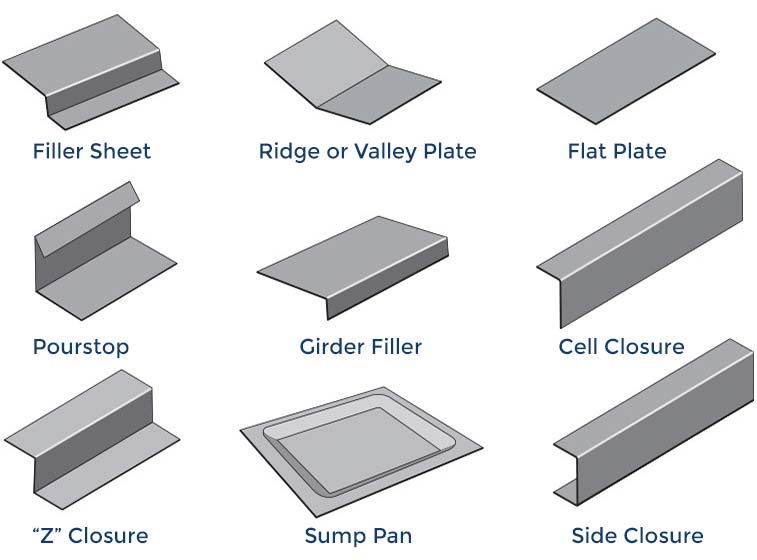

We Offer a Full Line of Accessories for Metal Deck and Bridge Forms:
Cell Closures
Pour Stop
Side Closure
Column Closure
Z Closure
J Closure
Weld Washers
Sidelap Screws
Attachment Screws
Ridge & Valley Plate
Flat Plate
Girder filler
Sump Pans
Custom Shapes
Available Finish
Galvanized G-60
Galvanized G-90
Phosphatized +Prime
Form Deck Industry References
SB300 3" LOK FLOOR
3VL 3.0CD
CFD3
Deck Accessories
Design Thickness
22 ga. (.0295)
20 ga. (.0358)
18 ga. (.0474)
16 ga. (0.600)
3" Composite Deck
Support Angles G-165 & G-210
Tension Straps G-165 & G-210
Tension Hooks G-165 & G-210
Clip Angles G-165 & G-210
Concrete Inserts
Channel Closures
End Abutment Closures
EPS Foam Void Fillers
Foam Adhesive
Sidelap Screws
Attachment Screws
Custom Shapes
